Best Aquarium CO₂ Systems for Planted Tanks: 5 Picks by Control, Cylinder Fit & Diffusion

Pressurized CO₂ can support demanding planted aquariums, but choosing the hardware is not a bubbles-per-second contest. We researched five exact US-market regulator/system variants by pressure-control architecture, cylinder and connection fit, solenoid or motor-valve control, bubble-counter/check-valve integration, diffuser compatibility, serviceability and exact marketplace identity. PetGearReport has not physically tested these regulators, measured delivered CO₂ concentration, validated regulator pressure under depletion, performed leak testing, or run plant-growth trials with them.

#1 · Our PickBest overall dual-stage CO₂ regulator

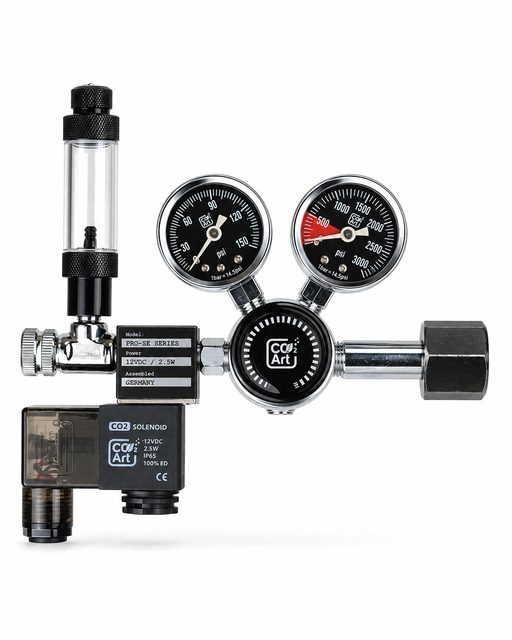

CO2Art PRO-SE Series Dual Stage Regulator

Best for: planted aquariums using a refillable North American CGA320 cylinder where dual-stage regulation, adjustable working pressure and scheduled solenoid control are priorities

9Score

What we like

• Current North American SKU CA-PRO-SE-CGA uses a CGA320 connection
• Dual-stage architecture with adjustable working pressure up to about 40 PSI
• Integrated 12V DC solenoid supports scheduled on/off control
• Bubble counter includes an integrated check valve
• Current SKU CA-PRO-SE-CGA and barcode 5060386349563 reconcile to indexed US ASIN B084TVM54D

What we don't

• Regulator package still requires a compatible CO₂ cylinder and suitable diffusion hardware
• 40 PSI is the regulator's documented working-pressure ceiling, not a universal aquarium setting
• A separate indexed PRO-SE record points to B07Q3G9582 without the same current SKU/barcode reconciliation, so that ASIN is not used here

CO2Art's current US PRO-SE page identifies the North American variant as SKU CA-PRO-SE-CGA, with a CGA320 cylinder connection, dual-stage pressure architecture, integrated 12V DC solenoid and adjustable working pressure up to about 40 PSI. Its bubble counter incorporates a check valve, and the manufacturer positions the dual-stage design as protection against end-of-tank pressure instability.

The 40 PSI figure is a hardware capability boundary, not a recommendation to run every diffuser at that pressure. Match working pressure to the downstream diffuser/reactor instructions and use the smallest stable setting that meets that hardware's requirements. Current indexed catalog evidence ties CA-PRO-SE-CGA and barcode 5060386349563 to Amazon.com ASIN B084TVM54D.

The strongest all-round research pick because the current manufacturer documentation and exact SKU/barcode identity make pressure architecture, connection type and control boundaries unusually clear.

Check price on Amazon →

#2Best value full-size dual-stage option

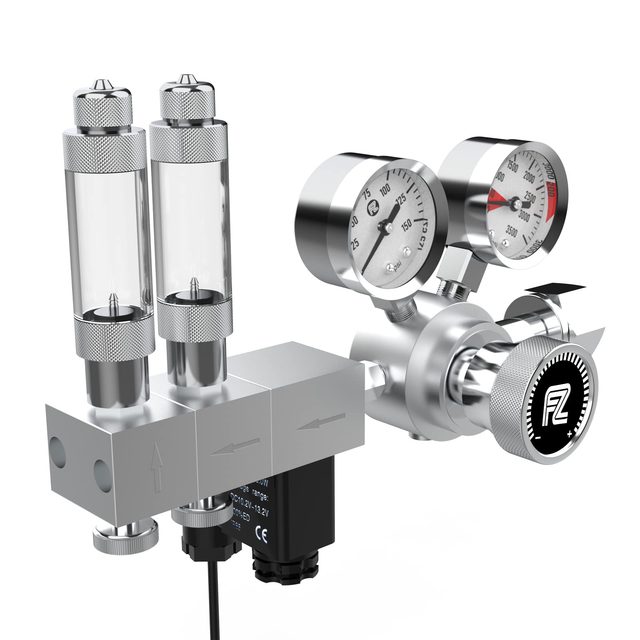

FZONE Pro Series Dual Stage CO₂ Regulator

Best for: planted aquariums that want full-size dual-stage regulation and solenoid automation without paying primarily for a compact form factor

9Score

What we like

• Current model FZ-2020Pro uses dual-stage pressure regulation
• 12V DC solenoid supports timer-controlled operation
• Adjustable output pressure and dual gauges make cylinder and working pressure visible
• North American version is documented for CGA320 cylinders
• Indexed model evidence maps FZ-2020Pro / 2020pro to Amazon.com ASIN B0838KXK5D

What we don't

• Cylinder, tubing layout and diffuser still need to be matched to the actual aquarium
• Multiple output/bubble-counter configurations require careful leak checks at each added connection
• Published regulator pressure capability should not be converted into one universal diffuser setting

FZONE documents the Pro Series FZ-2020Pro as a dual-stage regulator with adjustable output pressure, dual gauges and a 12V DC solenoid. The North American configuration uses a CGA320 connection for standard refillable CO₂ cylinders, while the output architecture supports fine flow control through the needle-valve/bubble-counter assembly.

As with every regulator here, output pressure and bubble rate are setup variables rather than universal planted-tank targets. The diffuser, tubing, check valve, aquarium circulation and livestock response all matter. Indexed exact-model evidence maps FZ-2020Pro / 2020pro to Amazon.com ASIN B0838KXK5D.

A strong full-size dual-stage alternative with clear pressure-control architecture and North American cylinder compatibility.

Check price on Amazon →

#3Best compact / multi-cylinder-fit option

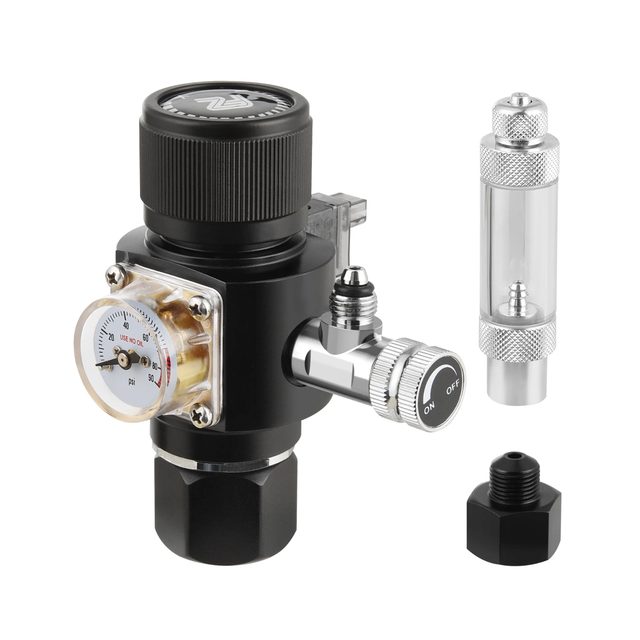

FZONE Mini Series V3.0 CO₂ Regulator (FZ-1011)

Best for: small or space-constrained planted setups where a compact dual-stage body and documented cylinder-format flexibility are more important than a full-size regulator layout

9Score

What we like

• FZONE sells FZ-1011 under its Mini Dual Stage name while the current product copy describes a triple-stage design
• Adjustable working pressure is documented from 0–60 PSI
• 12V DC solenoid, precision needle valve, bubble counter and check-valve functions are integrated
• Manufacturer documents compatibility paths for CGA320, paintball and 5/8 in UNF disposable-cylinder formats
• Indexed exact-model evidence maps the Mini Series V3.0 / FZ-1011 identity to ASIN B08P5FKQDT

What we don't

• Cylinder compatibility depends on using the correct included or specified adapter; connections must never be forced
• Manufacturer specifically says the 5/8 in path is not compatible with Fluval 45 g 3/8 in cartridges
• 60 PSI is a regulator range limit, not a recommended aquarium operating pressure

FZONE's current Mini regulator is model FZ-1011 and is sold in the Mini Series V3.0 family. FZONE currently titles the product “Mini Dual Stage” while the same product page describes a **triple-stage design**. This guide preserves that documentation difference rather than silently choosing one label. The unit also includes a 12V DC solenoid, precision needle valve and bubble-counter/check-valve hardware in a compact body. FZONE lists adjustable working pressure from 0–60 PSI and documents connection paths for standard CGA320 cylinders, paintball cylinders and 5/8 in UNF disposable cartridges.

Those options are not interchangeable without the correct adapter. FZONE explicitly excludes Fluval 45 g 3/8 in cartridges from the 5/8 in disposable-cylinder path. Indexed exact-model evidence maps FZ-1011 / Mini Series V3.0 to Amazon.com ASIN B08P5FKQDT.

The best compact choice because FZONE documents both the dual-stage control architecture and the cylinder-format boundaries rather than leaving adapter compatibility implicit.

Check price on Amazon →

#4Best built-in timer / multi-output option

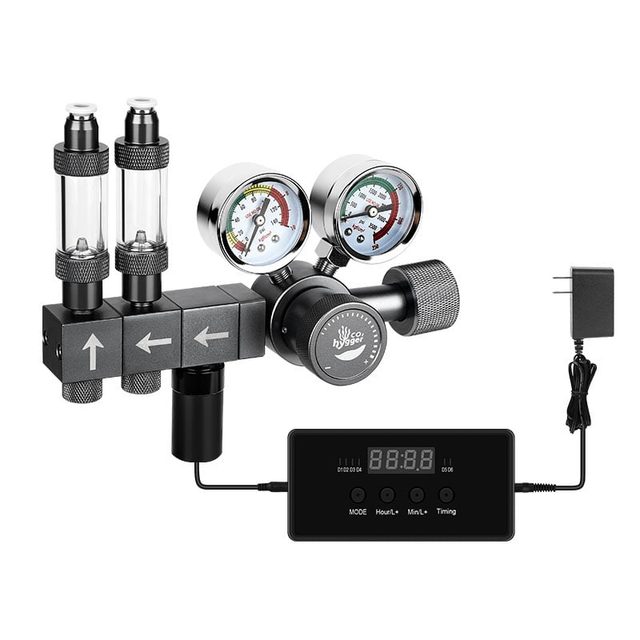

hygger HC039 CO₂ Regulator with Motor Valve

Best for: multi-tank or schedule-focused planted setups where the integrated timer/motor-valve design and expandable bubble-counter manifold are useful

8Score

What we like

• Current hygger SKU HC039 uses dual-stage adjustable-pressure architecture
• Motorized valve and included timer provide scheduled gas control without relying on a conventional solenoid-only layout
• Package includes two bubble counters with check valves
• Manufacturer says the manifold can expand to up to 8 bubble counters for multi-tank distribution
• Indexed model QUS-HC039 maps to Amazon.com ASIN B0G1GYLP58

What we don't

• Current manufacturer HTML does not state the US cylinder thread as clearly as CO2Art/FZONE, so buyers should confirm the supplied adapter and cylinder connection before purchase
• Multi-tank expansion increases the number of fittings and leak-check points
• Timer automation does not make a chosen bubble rate safe or appropriate by itself

hygger's current HC039 page describes a dual-stage adjustable-pressure regulator with a motorized valve, included timer, dual gauges and two bubble counters with check valves. The manufacturer also states that the manifold can expand to up to 8 bubble counters for multiple aquariums.

That architecture is useful for scheduled or multi-tank distribution, but every extra manifold outlet adds another connection that should be assembled and leak-checked according to the manufacturer's instructions. The current manufacturer page lists an adapter in the package but does not expose the North American cylinder thread as clearly as the leading picks, so PetGearReport does not invent one. Indexed US marketplace evidence maps model QUS-HC039 to Amazon.com ASIN B0G1GYLP58.

The strongest automation/multi-output specialist, scored more conservatively because current cylinder-thread documentation is less explicit than the leading dual-stage picks.

Check price on Amazon →

#5Best for Milwaukee controller integration

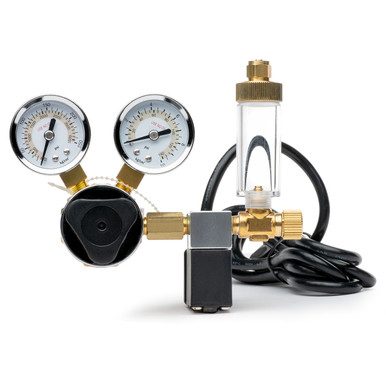

Milwaukee MA957 CO₂ Regulator with Solenoid

Best for: existing Milwaukee-controller users who specifically want the MA957 regulator/solenoid ecosystem and understand the single-stage trade-off

7Score

What we like

• Current manufacturer identity is MA957 with UPC 810666007578
• Solenoid valve allows external controller or timer switching
• Integrated bubble counter supports visual flow indication
• Designed to integrate with Milwaukee pH-controller workflows
• Exact MA957 / UPC identity reconciles to indexed Amazon.com ASIN B002P39I8U

What we don't

• Manufacturer explicitly describes MA957 as Single Stage rather than dual-stage
• Single-stage pressure architecture is less attractive for buyers specifically prioritizing output stability as cylinder pressure falls
• Controller integration does not replace correct cylinder handling, leak checks or livestock observation

Milwaukee currently identifies the MA957 as a Single Stage CO₂ regulator with solenoid valve and bubble counter, designed to integrate with the company's controller ecosystem. Current manufacturer identity includes UPC 810666007578.

The single-stage label matters. This guide does not score MA957 as if it had the same pressure architecture as the dual-stage CO2Art, FZONE and hygger options. Its strength is controller integration and exact identity clarity rather than leading pressure-control design. Indexed exact product evidence maps MA957 / UPC 810666007578 to Amazon.com ASIN B002P39I8U.

A defensible ecosystem pick with excellent identity evidence, but it ranks last because its current manufacturer-documented Single Stage architecture trails the dual-stage options on the most heavily weighted criterion.

Check price on Amazon →

A planted-aquarium CO₂ setup is a compressed-gas delivery system, not just a regulator and not just a bubble counter.

A complete installation can include the cylinder, regulator, working-pressure control, solenoid or motorized valve, needle valve, bubble counter, check valve, CO₂-safe tubing and a diffuser, atomizer or reactor. Some of the ranked products package several of those parts together; none of them eliminates the need to match the downstream hardware and cylinder connection correctly.

For the rest of a high-tech planted setup, compare filters for planted tanks and aquarium LED lights. CO₂, light, circulation and nutrient management interact, so buying a regulator is not a substitute for designing the whole system.

How we researched and scored

PetGearReport has not physically tested these CO₂ regulators, pressure-tested their fittings, measured delivered dissolved CO₂, independently verified solenoid/motor-valve life, or run controlled plant-growth trials. We compared current manufacturer documentation, connection and pressure architecture, system integration, compressed-gas operating boundaries, serviceability and exact US marketplace identity.

The displayed number is a PetGearReport research score, not a hands-on result, customer rating or laboratory measurement.

• Pressure & control architecture — 30% — documented single/dual-stage design, adjustable working pressure and automatic shutoff/control hardware.
• Cylinder & connection compatibility — 20% — how clearly the manufacturer documents the cylinder connection and supported adapter paths.
• Diffusion & system integration — 20% — needle valve, bubble counter, check valve, multi-output/control integration and downstream flexibility.
• Safety & operating boundaries — 15% — clarity around pressure limits, compatible connections, automation limits and safe setup.
• Maintenance & serviceability — 10% — access to seals, counters, manifolds, valves and other routine service points.
• Exact US/Amazon identity evidence — 5% — current product identifiers reconciled to the exact US marketplace variant.

The weighted decimals make the method auditable; they do not imply laboratory precision. Rank also reflects use case: the full-size FZONE Pro remains ahead of the Mini for buyers who want a conventional refillable-cylinder setup, while the Mini earns its score from compact connection flexibility.

There is no universal bubble-rate or CO₂ ppm rule

A bubble counter is a relative flow indicator for one specific setup. One bubble in one counter is not guaranteed to contain the same gas volume as a bubble in another counter. If pH is monitored or used to switch a CO2 solenoid, the reef pH monitoring guide explains calibration, probe-placement and controller failure boundaries that apply to the sensor/control loop. For dedicated meter/controller hardware, the reef pH monitor/controller guide compares exact control and monitor architectures.

That is why this guide uses no universal bubble-rate such as a fixed bubbles-per-second number for a given tank size.

It also uses no universal CO₂ ppm target. Dissolved CO₂ depends on more than regulator output: tank volume, carbonate chemistry, water movement, surface gas exchange, diffuser efficiency, plant mass, lighting, temperature and livestock respiration all matter.

Make changes gradually. If fish or invertebrates show abnormal breathing, loss of equilibrium, unusual surface behavior or other distress while CO₂ is running, stop CO₂ injection, restore appropriate aeration/gas exchange and investigate the setup. Do not protect a target number at the expense of livestock.

The aquarium water-parameters guide explains why pH and carbonate chemistry need system context rather than one universal chart.

Choose the cylinder first, then the regulator connection

The regulator cannot compensate for the wrong mechanical connection.

For North American refillable cylinders, CGA320 is a common documented path on the CO2Art PRO-SE and FZONE Pro configurations in this guide. FZONE Mini FZ-1011 additionally documents adapter paths for paintball cylinders and 5/8 in UNF disposable cartridges.

That does not mean every cartridge fits. FZONE explicitly says its documented 5/8 in disposable-cartridge path is not for Fluval 45 g 3/8 in cartridges.

Use only the regulator/manufacturer’s documented connection or adapter. Never force threads, improvise high-pressure adapters or assume visually similar fittings are compatible.

hygger HC039 illustrates why this check matters: its current manufacturer page lists an adapter in the package but does not state the North American cylinder thread as clearly as CO2Art and FZONE. This guide therefore leaves that thread unspecified and tells buyers to confirm the current US package before purchase.

Dual-stage vs single-stage pressure architecture

A regulator reduces high cylinder pressure to a lower working pressure. A dual-stage design performs pressure reduction across two regulation stages; a single-stage design uses one.

CO2Art PRO-SE, FZONE Pro and hygger HC039 are currently documented as dual-stage designs. FZONE’s FZ-1011 page is internally more specific: its title says “Mini Dual Stage,” while the current body copy describes a triple-stage design. Milwaukee explicitly describes MA957 as Single Stage.

Manufacturers often promote dual-stage regulators for better output stability as cylinder pressure changes. That is useful architecture, but it is not permission to leave any system unmonitored. A needle valve, solenoid and diffuser still need to be set up correctly, and leaks or incompatible fittings remain separate risks.

This pressure-architecture difference is why MA957 scores lower even though it has a strong exact-product identity and useful controller integration.

Working pressure belongs to the diffuser, not a generic chart

Different diffusers, atomizers and reactors can require different inlet pressure to operate correctly.

CO2Art publishes up to about 40 PSI working-pressure capability for the PRO-SE. FZONE publishes 0–60 PSI for FZ-1011. Those are regulator capability envelopes, not universal aquarium settings.

Follow the downstream diffuser/reactor manufacturer instructions. Use a pressure sufficient for stable operation of that hardware without treating the regulator’s maximum as a goal.

If the aquarium’s circulation is weak or highly uneven, diffuser placement can also change distribution. The canister-vs-HOB filter guide explains why return geometry and gas exchange should be considered as parts of the whole planted system.

Solenoid, motor valve and timer control

Automatic shutoff hardware makes a CO₂ routine repeatable, but the designs here are not identical.

• CO2Art PRO-SE: integrated 12V DC solenoid.
• FZONE Pro: 12V DC solenoid.
• FZONE Mini FZ-1011: 12V DC solenoid.
• hygger HC039: motorized valve plus included timer.
• Milwaukee MA957: solenoid designed to work with timer/controller logic, including Milwaukee’s controller ecosystem.

Automation controls when gas flows. It does not prove that the flow rate is safe, that the diffuser is suitable or that the aquarium has enough oxygen/gas exchange.

Bubble counters, check valves and multi-tank manifolds

A bubble counter helps you reproduce the same needle-valve position visually. A check valve helps prevent aquarium water from migrating backward toward pressure-control hardware.

CO2Art and FZONE integrate bubble-counter/check-valve functions in their current designs. hygger HC039 includes two bubble counters with check valves and the manufacturer says the manifold can expand to up to 8 bubble counters.

Multi-tank distribution is convenient, but every branch adds fittings, seals and adjustment points. Each connection should be assembled and checked for leaks according to the manufacturer instructions rather than assuming one leak test at the cylinder covers the whole manifold.

Compressed CO₂ cylinder safety

Pressurized CO₂ hardware deserves the same basic respect as other compressed-gas equipment.

• Secure the cylinder upright unless the cylinder/equipment manufacturer explicitly instructs otherwise.
• Use and store compressed-gas cylinders in a well-ventilated area away from conditions the cylinder supplier prohibits.
• Use only compatible regulators, valves and adapters; never force a connection.
• Check the assembled system for a leak using the method specified by the equipment manufacturer before routine use.
• Protect the cylinder and regulator from impact or tipping.
• Before disconnecting or servicing equipment, close the cylinder valve and follow the manufacturer’s depressurization/service procedure.
• Follow the cylinder supplier and regulator manufacturer instructions for transport, storage, installation and service.

These are equipment-handling boundaries, not a substitute for local compressed-gas rules or supplier instructions.

Gas exchange still matters in a CO₂-injected aquarium

CO₂ injection does not remove the animals’ need for oxygen.

Surface movement, plant photosynthesis, respiration, filter return geometry and stocking all affect the gas balance. Trying to eliminate every trace of surface movement merely to “save CO₂” can be a poor trade if livestock oxygenation suffers.

Watch the animals, not just the plants or drop checker. If livestock shows distress, stop CO₂ injection and restore appropriate aeration/gas exchange while diagnosing the cause.

The aquarium maintenance schedule can help turn equipment checks, cleaning and parameter review into a repeatable routine rather than relying on one setup-day adjustment forever.

Product-by-product fit

CO2Art PRO-SE Series

The current North American variant is CA-PRO-SE-CGA with barcode 5060386349563. It uses a CGA320 connection, dual-stage regulation, an integrated 12V DC solenoid and adjustable working pressure up to about 40 PSI.

Choose it when a standard refillable CGA320 cylinder and strong current identity documentation are priorities.

The exact marketplace identity needs one clarification. Current SKU/barcode evidence maps CA-PRO-SE-CGA / 5060386349563 to B084TVM54D. Another indexed generic PRO-SE record points to B07Q3G9582, but it does not carry the same current SKU/barcode reconciliation. B07Q3G9582 is therefore not used or ranked as the affiliate identity on this page.

FZONE Pro Series FZ-2020Pro

The full-size Pro Series uses a conventional dual-stage body, adjustable output pressure, dual gauges and a 12V DC solenoid. The North American configuration is documented for CGA320 refillable cylinders.

This is the more conventional FZONE option when compact adapters are less important than a full-size regulator layout.

Indexed model evidence maps FZ-2020Pro / 2020pro to B0838KXK5D.

FZONE Mini Series V3.0 FZ-1011

The Mini Series gives up some full-size ergonomics for connection flexibility and compact dimensions.

FZONE documents 0–60 PSI adjustable working pressure, a current triple-stage design description, 12V DC solenoid, precision needle valve, bubble counter/check-valve functions and compatibility paths for CGA320, paintball and 5/8 in UNF disposable cylinders.

The connection warning is important: the documented 5/8 in path does not make it compatible with every disposable cartridge.

Indexed identity maps FZ-1011 / Mini Series V3.0 to B08P5FKQDT.

hygger HC039

The HC039 is the automation/multi-output specialist. Its motorized valve pairs with an included timer rather than relying only on a standard solenoid schedule. The package includes two bubble counters and supports expansion to up to 8 according to hygger.

The current page is less explicit about the US cylinder thread. That costs it connection-documentation points. Confirm the current adapter/cylinder fit before ordering rather than assuming a thread standard from marketplace copy.

Indexed model QUS-HC039 maps to B0G1GYLP58.

Milwaukee MA957

Milwaukee explicitly calls the MA957 a Single Stage regulator. It includes a solenoid and bubble counter and is designed for integration with Milwaukee control equipment.

Choose it primarily when that ecosystem fit is the reason for the purchase. Buyers prioritizing dual-stage pressure architecture have stronger options higher in this ranking.

Current manufacturer identity MA957 / UPC 810666007578 maps to B002P39I8U.

Identity verification notes

Technical claims use current manufacturer documentation. Indexed US marketplace/catalog evidence is used only to reconcile affiliate identity.

• CO2Art PRO-SE — current US SKU CA-PRO-SE-CGA, barcode 5060386349563 → Amazon.com ASIN B084TVM54D. Generic indexed ASIN B07Q3G9582 is not used because it lacks the same current SKU/barcode reconciliation.
• FZONE Pro Series — model FZ-2020Pro / 2020pro → B0838KXK5D.
• FZONE Mini Series V3.0 — model FZ-1011 → B08P5FKQDT.
• hygger HC039 — current SKU HC039, indexed model QUS-HC039 → B0G1GYLP58.
• Milwaukee MA957 — model MA957, UPC 810666007578 → B002P39I8U.

Direct Amazon product-page probing was not used for this publication pass.

Sources and verification

• CO2Art — PRO-SE Series Dual Stage Regulator — current North American SKU, CGA320 connection, dual-stage architecture, 12V DC solenoid, working-pressure envelope and bubble-counter/check-valve design.
• FZONE — Pro Series regulator — FZ-2020Pro architecture, dual-stage regulation, gauges, output adjustment and solenoid.
• FZONE — Mini Dual Stage Regulator FZ-1011 — 0–60 PSI range, compact dual-stage design, solenoid and documented cylinder/adapter compatibility limits.
• hygger — HC039 CO₂ Regulator with Motor Valve — dual-stage design, motor valve/timer, two bubble counters, check valves and multi-output expansion.
• Milwaukee — MA957 CO₂ Pressure Regulator — MA957 identity, Single Stage design, solenoid, bubble counter and controller integration.
• CCOHS — compressed-gas cylinder storage and handling — upright securing, ventilation, compatible equipment and cylinder-handling practices.

No Amazon price, stock or availability claim is made here. Those are dynamic and are not part of the research score.
